How an engineered beehive works: a systems view

In the wild, honeybees often nest inside hollow trees or rock crevices. These homes are enclosed, vertically organised, insulated, and entered through a small opening that is easy to defend. Engineered hives around the world differ from one another slightly, but share common characteristics that intentionally mimic this arrangement.

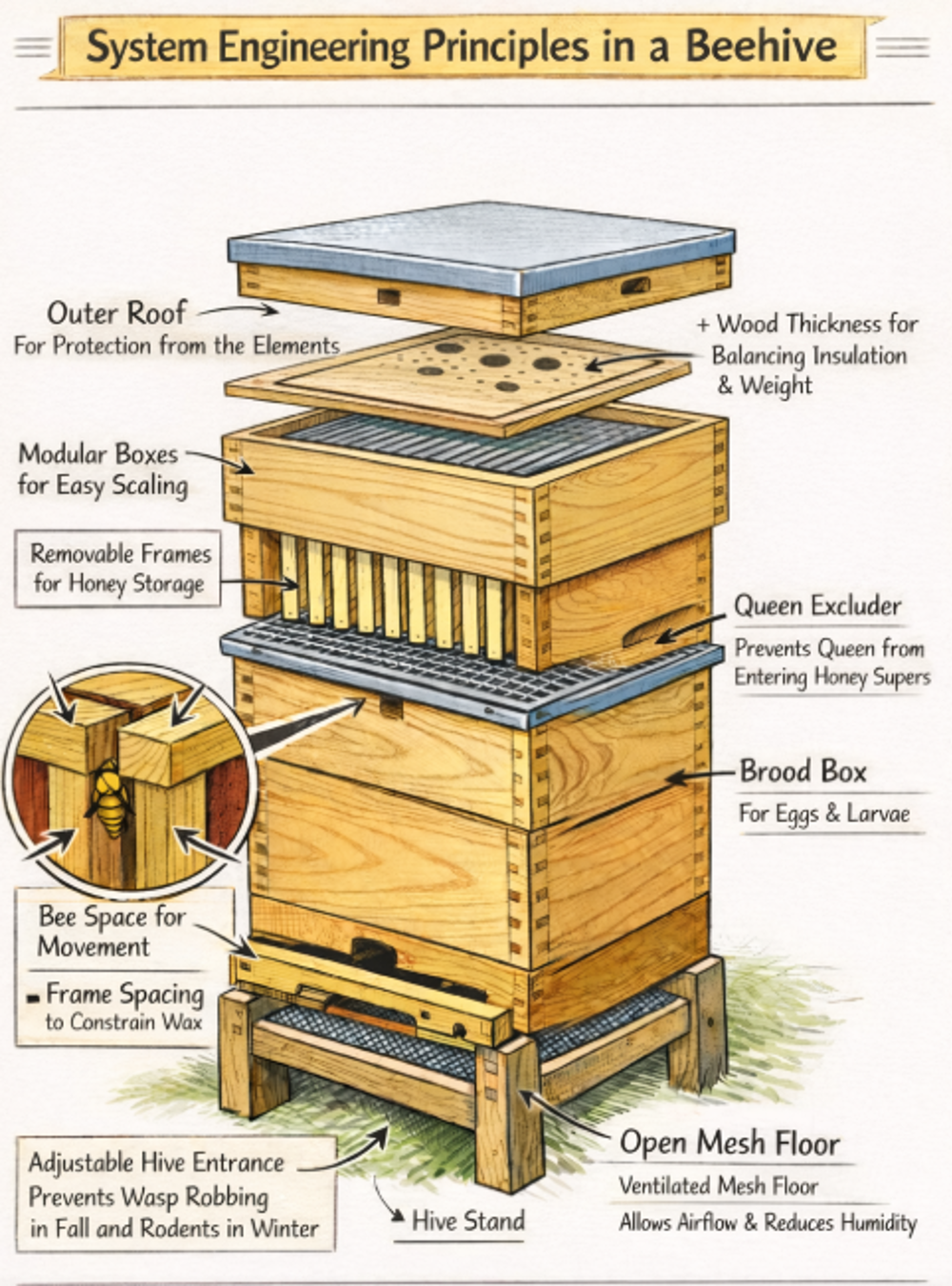

Engineered hives are built from stacked, modular wooden boxes, tall rather than wide, with a single controlled entrance near the bottom. At the top of the hive, the outer roof protects the colony from rain, wind, and temperature extremes. The wood thickness is a trade-off: thick enough to insulate, but light enough to lift. Western red cedar is a popular choice and is also naturally resistant to fungal attack. Small ventilation openings near the top allow warm, moist air to escape – as condensation and mould can be more dangerous to bees than cold temperatures alone.

The hive’s lower boxes, called brood boxes, are where the queen lays eggs and larvae are raised. The upper boxes, called honey supers, include racks of removable frames designed mainly for honey storage. Between the brood boxes and the honey supers sits the queen excluder, an engineered grid that allows worker bees to pass through but prevents the queen from entering the upper boxes. This keeps brood out of the honey supers, producing clean, harvestable honey. Some honey is still stored within the brood boxes to feed larvae and support daily activity.

This is a more compartmentalised arrangement than bees tend to build in the wild. Rather than physically segregate honey from brood on separate combs, natural combs often have a lobed shape that conforms to the cavity they are in. Honey is stored in the upper parts of the lobe surrounding the  brood below.

At the bottom of the hive, an adjustable entrance can be reduced in size during autumn and winter, making it easier to defend against wasps and rodents. Beneath this, a mesh floor improves airflow and allowing phoretic mites removed by grooming to fall out of the hive.

One of the most important engineering breakthroughs in beekeeping came from Lorenzo Langstroth in the 1800s: the discovery of bee space. Langstroth observed that bees naturally maintain a narrow, consistent gap between combs. If the gap is too small, bees seal it; if it is too large, they fill it with comb. By designing hives with precise spacing between all surfaces including frame-to-frame, and frame-to-sidewalls, engineers ensure that bees build wax across the two-dimensional frame surface. This allows individual frames to be removed for inspection or harvesting without destroying the hive.

Modularity also allows the engineered hive to change with the seasons. In spring and summer, a healthy colony can grow to 50,000 bees or more, all from a single queen. As nectar becomes abundant, the brood grows and honey supers are added to give the colony more space. In autumn and winter, nectar sources decline and the population may shrink to under 10,000 bees. Supers are removed, and the hive contracts into a compact, energy-efficient system. The entire hive is also portable, which allows beekeepers to move the colony for forage. In the UK, this might be to heather moors, while in the US, there is mass movement to support the almond crop.

Honey is not only a product for the beekeeper. It is also the colony’s energy reserve. Responsible beekeeping means harvesting only surplus honey and leaving enough for winter survival. Engineered beehives are partnerships: systems that respect bee behaviour while using thoughtful design to support sustainability and shared abundance.
